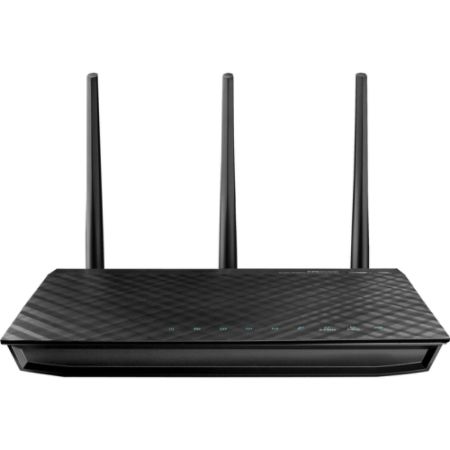

Asus RT-N66U IEEE 802.11n Wireless Router Item # 946078
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
946078
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The RT-N66U dual-band wireless router from ASUS brings to the fore super-fast connectivity with up to 450 Mbps per band simultaneously. It works in both 2.4 GHz and 5 GHz, and supports up to a massive 300,000 concurrent data sessions - approximately 20 times the capacity of mainstream routers.This makes the RT-N66U the gamer's choice, as its enhanced throughput eliminates lag and opens up new multitasking possibilities - users can download content while gaming online without experiencing slowdowns typical in consumer based routers.The RT-N66U includes hardware NAT to alleviate overall system load by relieving the CPU of background netcode processing. It is a true Gigabit Ethernet router, supporting 1 Gbps connections where available for the ultimate in broadband speeds.
Product Details
| Item # | 946078 |
| OfficeMax # | 23647751 |
| Manufacturer # | 3136255 |
| Ethernet Technology | Gigabit Ethernet |
| Wireless Transmission Speed | 450 Mbit/s |
| power source | AC adapter |
| Ethernet Port | Yes |
| Gigabit Ethernet Port | Yes |
| height | 5.9 in |
| System Requirements | Operating Systems:Windows 7; MAC OSX |
| UNII Maximum Frequency | 5 GHz |
| Number of Network (RJ-45) Ports | 4 |
| Certifications & Standards | IEEE 802.11a; IEEE 802.11b; IEEE 802.11g; IEEE 802.11n; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; EMC; R&TTE |
| PoE (RJ-45) Port | No |
| width | 13.8 in |
| package contents | RT-N66U Wireless Router; Network Cable; Support CD (User Manual/Utilities); Stand; AC Adapter; Quick Start Guide; Warranty Card |
| Security Features | NAT; SPI; DOS; MAC Address Filtering; PPTP; L2TP; PPPoE; URL Filtering |
| security/encryption | 64/128-bit WEP; WPA-PSK; WPA2-PSK; WPA-Enterprise; WPA2-Enterprise |
| depth | 10.6 in |
| Broadband Transmission Technology | Ethernet |
| Product Name | RT-N66U Wireless Router |
| Total Number of Antennas | 3 |
| manufacturer | ASUS Computer International |
| Management | Web based management; DHCP; Syslog |
| VGA | No |
| Powerline | No |
| Wireless LAN Standard | IEEE 802.11n |
| brand name | ASUS |
| USB | Yes |
| UNII Band | Yes |
| Network (RJ-11) | No |
| Number of Broadband (RJ-45) Ports | 1 |
| Management Port | No |
| ISM Maximum Frequency | 2.40 GHz |
| ISM Band | Yes |
| form factor | Desktop |
| model name | RT-N66U |
| Fast Ethernet Port | Yes |
| Serial | No |
| Show More ▾ |
Customer Reviews
Rated 2.5 out of 5�by 2
reviewers.
Rated 1 out of 5�by JJHuggins Buggy And Difficult!
I purchased two of these routers. Out of the box, both suggested a firmware update. One worked fine, but the other router froze during the update and went into "rescue" mode (on/off light slowly blinking). After four hours of web searching and trying various reset combinations to no avail, I returned the unit.
October 28, 2013
Rated 4 out of 5�by Dman34usa Rock Solid
I am pleased with the router. Easy setup for what I needed, especially usb devices. It has solid signal strength for all 16 wireless devices I have in my home. I would recommend this router for anyone that is looking for stable home networking.
July 1, 2013
1-2 of 2
Product Q & A
(1 Q�:�2 As)
Product Q&A
Ask your questions. Share your answers.
2 years, 10 months ago
by
bafox
Answers
Answer:�
Yes, it will work with XP and Vista.Gender:�Male
Age:�25 to 34
1 year, 7 months ago
by
bogut319
Menomonee Falls, WI, USA
Answer:�
Yes, this will work with any OS. You do not need a specific OS in order to use this router via wired or wireless. You can log in to the router's GUI through a web browser so there is nothing you need to install on your computer to use this router.2 years, 10 months ago
by
Asus_Answers
1 of 1
1 of 1
From the Manufacturer|
ASUS and You
-
Incredible Performance with Incredible Control
The ASUS RT-N66 dual-band wireless-N900 gigabit router delivers even greater incredible performance and wider coverage range. With ASUSWRT, quickly setup your network, customize user access, and monitor signal strength. Following the award-winning RT-N56U, the RT-N66 increases Wi-Fi speed for both 5 GHz and 2.4 GHz transmission by 50% up to 900Mbps that makes it ideal for bandwidth demanding tasks such as HD video steaming, multiplayer gaming, USB hard drive file sharing, and USB connected printer sharing. Built-in Wi-Fi amplifiers make the RT-N66 the perfect wireless router for larger, multi-level homes and buildings with signal range that reaches virtually any area.
Whether you’re a tech-savvy enthusiast or a first-time user, the RT-N66 is exceptional easy to use with CD-free, Quick Installation Setup (QIS) that lets you plug-n-surf right out of the box and connect PCs, smartphones, tablets, and other wireless devices quickly. Thanks to its refined interface tools, you get control like never before, letting you monitor signal strength, setup parental settings, and other useful functions in a robust yet intuitive way.
Key Features
- 2.4 GHz and 5 GHz Concurrent Dual-Band Transmissions for Strong Signal Strength and Ultra-Fast Connection Rates up to 900Mbps
- Gigabit Ethernet Ports for the Fastest, Most Reliable Internet Performance
- Download Master for Wireless Data Storage and Access to Router-Connected USB Storage Devices
- Expanded Wireless Coverage with Detachable High-Powered Antennas
- File Sharing, Printer Sharing, and 3G Sharing via Multi-Function Twin USB Ports
- IPv6 enabled for future proof Web surfing compatibility
- ASUSWRT for Easy Setup, Signal Monitoring, and Network Application Control
Features
-
Designed for Class-Leading Speed and Range
Designed with the latest in networking technology, the RT-N66 delivers exceptionally fast wired and wireless connectivity. What’s more, it comes with a powerful detachable Wi-Fi antenna to further extend wireless range. -
Dual-Band Connectivity for Lag-Free Entertainment
Delivering both 2.4 GHz and 5 GHz concurrent bands up to 450 Mbps and 450 Mbps respectively, the RT-N66 has a total speed of up to 900 Mbps connectivity to provide speed with stability. Perform basic internet tasks like Web browsing and file downloading under the 2.4 GHz band, while also simultaneously streaming HD content and other demanding applications smoothly on the 5 GHz band. -
Optimized and Reliable Wireless Coverage via Ai Radar
ASUS Ai Radar intelligently strengthens connections to wireless devices. With high-powered amplification and beam forming, it provides optimized signals in any direction with better coverage to improve data throughput. -
Easy Setup Through Your Tablet, Smartphone, or PC
With the RT-N66, setup is simple. Simply power and connect the router and then open a bowser on a Wi-Fi-enabled device like a laptop or tablet. You will be taken to a setup page with a prompt to enter the ID/password listed in your manual and that’s it! Now setting up your network is easier than ever. -
Powerful functions, easiest management
With the ASUSWRT Dashboard UI, setup, monitor, and control network applications all in one intuitive area. The whole new dashboard interface lets you manage all clients and settings on a single graphical interface and provides 1-click updates. -
Optimize Your Network for You
Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the RT-N66 has a Quality of Service (QoS) that lets you select how much bandwidth is prioritized for virtually any task. Plus, the traffic monitor allows you to check your Web usage in a clear and graphical interface. -
Two Multi-Functional Built-in USB ports
Featuring connectivity to devices, FTPs, SAMBA, UPnP AV servers, and DLNA support, the RT-N66 makes sharing and networking easier with two built-in USB ports. Download HTTP, FTP, and P2P files to a router-connected USB storage device all day and without a PC. Additionally, the twin USB ports allow for networked printer and file server connections, so you perform multiple tasks at once.
Gallery
What's in the Box
- RT-N66U Dual-Band Wireless-N900 Router
- RJ-45 Cable
- Support CD (User Manual and Utility Software)
- Power Adapter
- Warranty Card
- Quick Start Guide
Specifications
| Hardware | |
| Processor: | Broadcom 470 @ 600MHz |
| RAM: | 256MB DDR2 |
| Flash: | 32MB Flash + Micro SD slot |
| WAN: | 1 x Gigabit Ethernet or USB 3G/4G dongle |
| LAN: | 4 x Gigabit Ethernet |
| USB: | 2 x USB 2.0 ports |
| Antenna: | 3 x external detachable for 2.4 GHz and 5 GHz |
| Dimensions: | 207 x 148.8 x35.5 (L x W x H) |
| Power Supply: | AC Input: 100~240Vac/1.2A 50~60Hz |
| DC Output: | 19V/ 1.58A |
| Buttons: | WPS Button, Reset Button, Power Button |
| Wireless Features | |
| Frequency: | 2.4 GHz and 5 GHz (concurrent) |
| Data Rate: | 802.11n (2.4 GHz & 5 GHz) up to 450Mbps; 802.11a/g up to 54Mbps; 802.11b up to 11Mbps |
| Output Power: | High power: 2.4 GHz and 5 GHz (user adjustable); 802.11n 17~26 dBm; 802.11g 17~26 dBm; 802.11b up to 26 dBm |
| Encryption: | 64/128 bit WEP, WPA-PSK/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Authentication: | Wi-Fi Protected Setup (WPS & PIN) |
| Software | |
| Network Protocol: | Automatic IP, Static IP, PPPoE (MPPE support), PPTP, L2TP IPv4, IPv6 |
| DHCP: | Server, Client, DHCP, Client list, IP and MAC binding |
| QoS: | WMM, User definable rule for IP/MAC, Port, Protocol, upload and download bandwidth management |
| Port Forwarding: | Port forward, Port Trigger, UPnP, DMZ |
| Dynamic DNS: | ASUS DDNS, DynDNS, TZO, ZONEEDIT |
| NAT Pass through: | IPSec, PPTP, L2TP, RTSP pass through, PPPoE relay |
| Firewall: | NAT and SPI, intrusion detection, DoS protect, Port filter, MAC filter |
| Access Control: | Parental controls, MAC filter, Network service filter, URL filter |
| Management: | Network map, Traffic monitor, Performance tuning, Telnet server, System log |
| Operation Mode: | Router Mode, AP Mode |
| Download Master: | Support BT, NZB, HTTP, FTP, E2DK download; Support encryption: DHT, PEX and Magnet Link; Upload and download bandwidth control; Download scheduling |
| DLNA Server: | Image: JPEG; Audio: MP3, WMA, WAV, PCM, MP4, LPCM, OGG; Video: ASF, AVI, DIVX, MP2P, MPEG, MPG, TS, VOB, WMV, MKV, MOV |
| Printer Server: | Multifunctional printer support |
| File Server: | Samba server & FTP server with account management |
| VPN Server: | PPTP VPN server |
©2013 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications are subject to change without notice and features are only in select models. Products may not be available in all markets. Brand and product names mentioned are trademarks of their respective companies.
